WALL-i Pilot

Control and Monitor Positive and Negative Pressure in a BIOCAIR® unit

  • Protected environments and at-risk units in the hospital
  • Laboratories

Monitoring air quality in your protected environments without having to think about it.

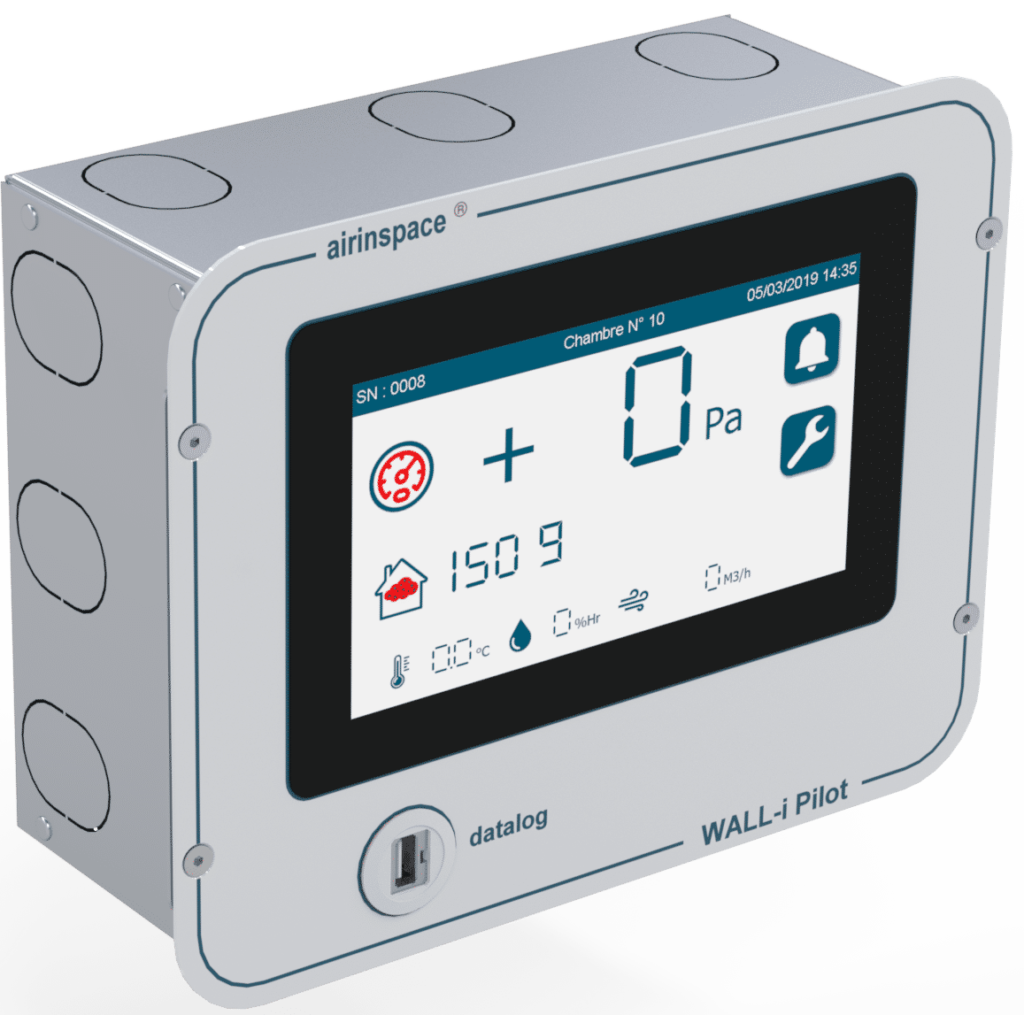

Wall-i Pilot acts as a pressure room monitor that delivers real-time information on the pressure level inside the BIOCAIR® in real time: connected to our PLASMAIR® or HEPA air decontamination units, WALL-i PILOT directly takes over the air handling unit.

It automatically adjusts its flow rate to reach the positive or negative pressure setpoint you set in the room or laboratory. You can also monitor the room’s temperature and relative humidity at any time.

Optionally, you can also measure the particle concentration (ISO Class).

Manage air decontamination units via the WALL-i Pilot pressure monitor for isolation rooms to achieve positive or negative pressure in a BIOCAIR®

Monitor the room’s temperature and relative humidity

Add the particle concentration monitoring option

Retrieve data measured to improve traceability in your unit

Product designed to make your everyday working life easier

Easy programming thanks to an intuitive touch screen

Data retrieval by Modbus connection or connection to your hospital’s GTC as an option

Notification of pressure or flow rate alarms

Technical data

Relative humidity
0% to 90% RH (unregulated)
Temperature
0°C / +35 °C (unregulated)
Dimensions
H 23 cm x L 27.3 cm x D 7.8 cm
Differential pressure
+/-30 Pa maximum
ModBUS connection
ModBUS DB9 Series
Connection of the mobile air handling unit
RJ45 connector
USB connector
2 connectors for DataLog data retrieval and firmware update

Our experts are attentive to your needs

Get tailored advice on the installation of a WALL-i PILOT counter in your facility.

Contact an expert
